Working Principle & Structure:

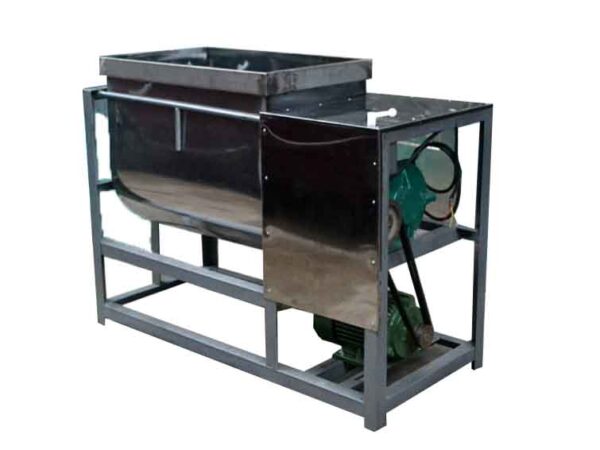

Horizontal Ribbon Mixer belongs to low speed rotary machine. The wide ribbon makes the convection of the material to achieve the mixing effect.

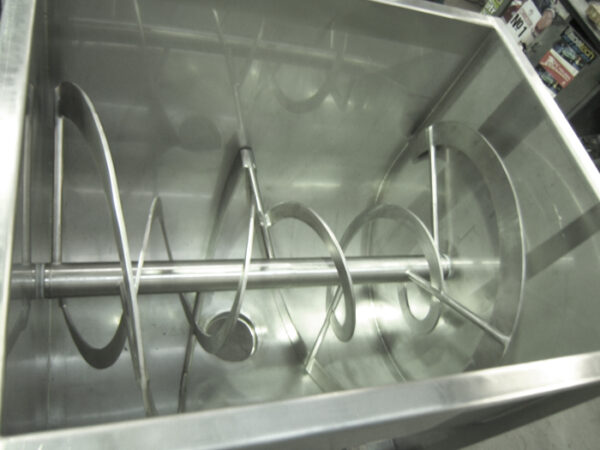

It consists of container, main shaft, and the drive transmission part. The container is U shape. The machine can be made of Carbon Steel (C model) and Stainless Steel (P model). It can be also equipped with the jacket for the container. It can heat, cool or vacuum in the jacket. The inside pressure of the jacket is less than 0.1 Mpa (The pressure can be customized). Two layers screw ribbons makes the convection of the material to achieve the mixing effect rapidly. There is a discharging valve in the middle of the container bottom. The drive parts adopt separated devices, that is, the motor is connected with reducer by the strap. Thus, It can save the space and has the overload protection.
For the big load factor, small work area, this machine is applied to mix the sticky powders or granule with large capacity and stable variety. Therefore, it is widely used in pharmaceutical, foodstuff, chemical, pesticide, plastic, dyestuff industries, etc.
